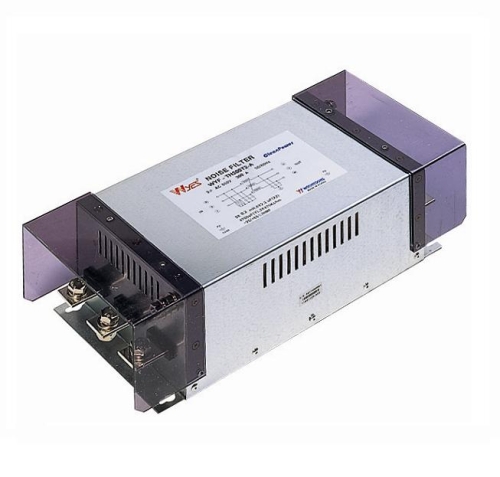

3P-Multi-Stage 250, 500V > WYFT600T2M WYFT800T2M WYFT1000T2M (3Phase AC250V Multi-stage type Type)
Click on the above image to view larger image.

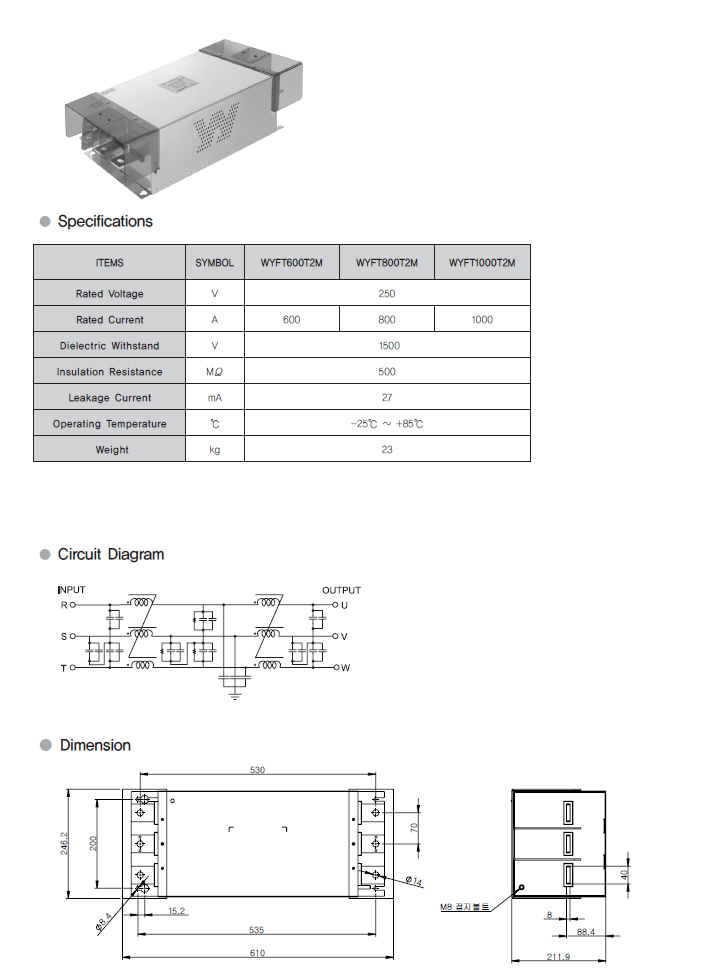

Model NoWYFT600T2M WYFT800T2M WYFT1000T2M
TYPE3Phase AC250V Multi-stage type
Rating
Input250V
Output250V
Capacity600A, 800A, 1000A
 |
Specifications and Features
·High Attenuation Effect Against
·High Voltage Pulse Noise
·2 Stage Filter
·Band Width : 150KHz~30MHz
·RoHS Compliant
