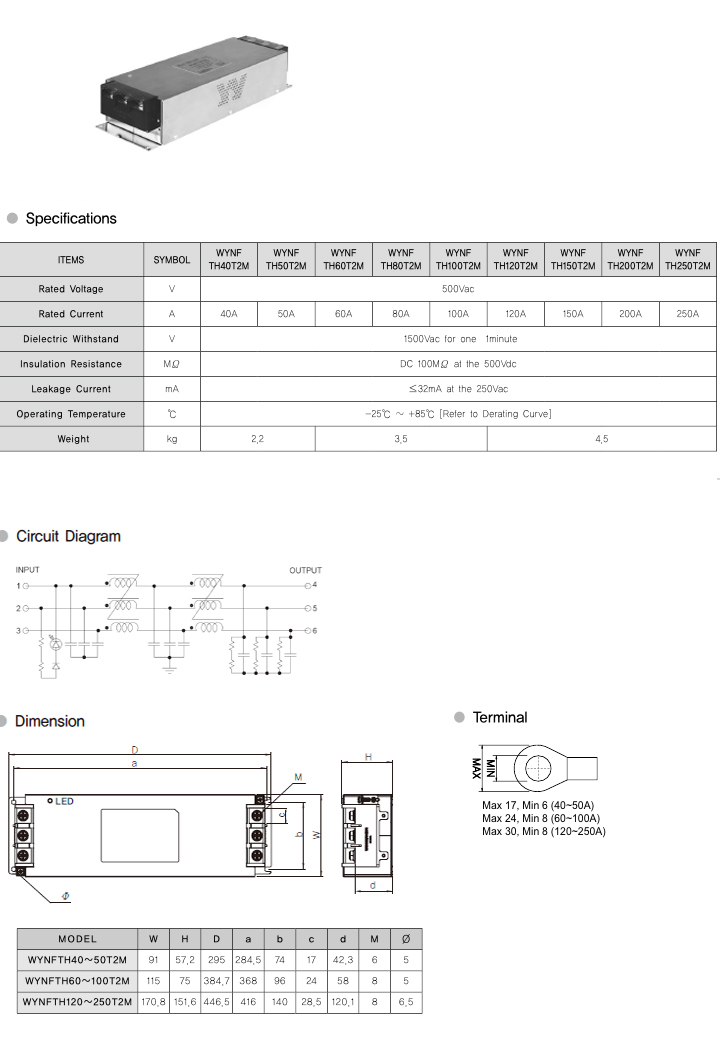

3P-Multi-Stage 250, 500V > WYNFTH40T2M WYNFTH50T2M WYNFTH60T2M WYNFTH80T2M WYNFTH100T2M WYNFTH120T2M WYNFTH150T2M WYNFTH200T2M WYNFTH250T2M (3Phase AC500V Multi-stage type (New) Type)
Click on the above image to view larger image.
Model NoWYNFTH40T2M WYNFTH50T2M WYNFTH60T2M WYNFTH80T2M WYNFTH100T2M WYNFTH120T2M WYNFTH150T2M WYNFTH200T2M WYNFTH250T2M
TYPE3Phase AC500V Multi-stage type (New)
Rating
Input500V
Output500V
Capacity40A, 50A, 60A, 80A, 100A, 120A, 150A, 200A, 250A
 |
Specifications and Features
· Wide Band : High Attenuation
· Band Width : 150kHz~30MHz
· RoHS Compliant
