1P-Multi-Stage 250V > WYFS06T1M WYFS10T1M WYFS15T1M WYFS20T1M WYFS30T1M (1Phase AC250V Multi-stage type Type)
Click on the above image to view larger image.

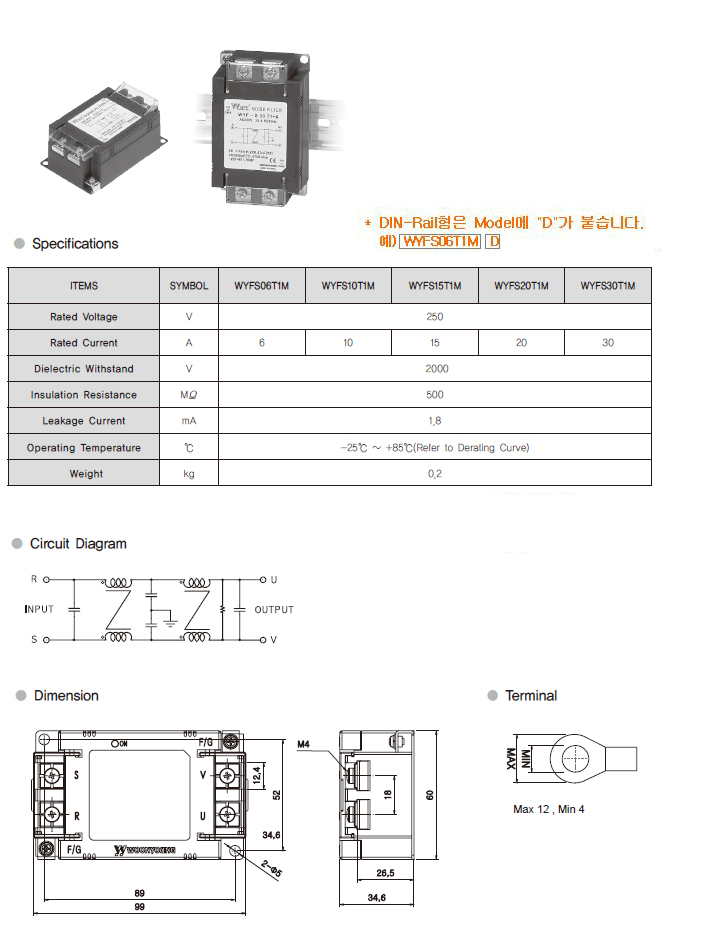

Model NoWYFS06T1M WYFS10T1M WYFS15T1M WYFS20T1M WYFS30T1M
TYPE1Phase AC250V Multi-stage type
Rating
Input250V
Output250V
Capacity6A, 10A, 15A, 20A, 30A
 |
Specifications and Features

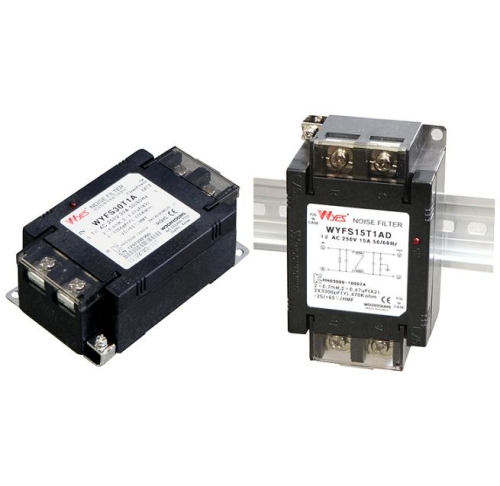

·2 Mounting Option
-WYF****D : Din Rail Mounting
-WYF**** : Screw Mounting
·Wide Band : High Attenuation
·Band Width : 150KHz~30MHz
·Low Leakage
·RoHS Compliant
